HVM-110L-BC / HVM-110L-AC HVM-110L-BC / HVM-110L-AC

HVM-110L-BC / HVM-110L-AC

4/5 AXIS

STANDARD ACCESSORIES
‧Coolant System
‧Auto Lubrication
‧Spindle Air Blast
‧Compact Fluorescent Work Light
‧Alarm System
‧Work Air Blast
‧Rigid Tapping
‧Heat Exchanger ‧Enclosed Splash Guard
‧Auto Tool Changer
‧3 Axes Telescopic Steel Guard
‧RS232/ RJ45/ USB Interface
‧Auto Power Off (M30)
‧M.P.G
‧Level Pads & Bolts

OPTIONAL ACCESSORIES
‧Chain Type Chip Conveyor & Chip Cart
‧Oil Coolant
‧CNC Rotary Table
‧Upgrade Motor
‧TS 27R Tool Setting
‧OMP40 / OMP60 Work Piece Setting ‧Isolate type Transformer
‧Voltage Stabilizer
‧Angle Encoder (A,B,C axis)
‧Air Cooler for Control Box
‧Oil Skimmer
‧Air Gun & Water Gun
‧Germany brand Heidenhain X+Y+Z axis Linear Encoders
  HVM-110L-BC HVM-110L-AC
  Roller Cam Driver B-axis
+550mm built-in work table C-axis		 Fixed Head
+320/450mm Tilting Rotary Table (Without taking out flat table)
Working
Table		 Table Size 1260 x 620 mm 1260 x 610 mm
T-Slot
(width x dis.x no.)		 18 x 100 mm x 6 18 x 100 mm x 6
Travel (X x Y x Z) 1100 x 650 x 800 mm  1100 x 650 x 1000 mm
Positioning XYZ axis 0.005 / 300mm 0.005 / 300mm
Repeatability XYZ axis ± 0.003mm ± 0.003mm
X/Y/Z-Axis Motor
(Z axis with Brake)		 4.8 / 4.8 / 5.2B kw 4 / 4 / 4B kw
Rapid Feed Rate
(X/Y/Z)		 36 x 36 x 30 M/min 36 x 36 x 30 M/min
Feed Rate (X/Y/Z) 1-20000 mm/min 1-20000 mm/min
Max. Table Load 770 kgs 300 kgs
Spindle Taper BT40 BT40
Main Motor 15Kw (19.6Kw Option) 15 Kw
Spindle Speed (RPM) 16000 / 20000 12000 / 15000
Spindle Type (RPM) Built-IN : BBT40 / HSK63A Built-IN: BBT40 / HSK63A (OPT.)
Spindle Nose Vertical to
Table Surface		 100-900 mm 150-1150 mm
Spindle Center to Column 740 mm 740 mm
Tool Magazine Tool Storage Capacity (PCs) /
ATC Type		 30 ARM
40 CHAIN		 30 ARM
40 CHAIN
Max. Tool Diameter / Weight 76 mm / 6 kgs 76 mm / 6 kgs
Miscellaneous Air Requirement 6 kg/cm2 6 kg/cm2
Power Requirements (KVA) 45 45
Coolant Tank Capacity (L) 300 300
Machine Weight 7,800 Kgs 7,600 Kgs
Swivel Head
(A & B Axis)		 Driver Type Roller Cam Worm Gear
Reduction Ratio 1 : 90 1 : 180
Tilting Range --120° ~ +120° --120° ~ +30°
Rotation Speed 33.3 rpm 11.1 rpm
Min. Unit 0.001° 0.001°
Clamp Torque 24 Nm / 250 kg-m 18 Nm / 210 kg-m
Working Torque 16 Nm / 160 kg-m -
Rotary Table
(C Axis)		 Type Worm Gear Worm Gear
Driver Type 1 : 180 1 : 90
Table Diameter 550 mm 320 mm / 450 mm
Center Bore Diameter 50H7 150H7 mm
Rotation Speed (RPM) 11.1 rpm / 500-800 IDD Motor 22.2 rpm
Min. Index (Sec.) 4" 4"

ÜRÜN FOTOĞRAFLARI

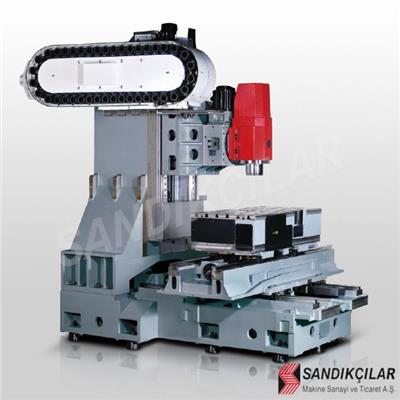

HVM-110L-BC / HVM-110L-AC - ÜRÜN FOTOĞRAFLARI -
HVM-110L-BC / HVM-110L-AC - ÜRÜN FOTOĞRAFLARI -
Accuracy B/C Axis With Heavy Table Load Option With High Angle Encoder (B+C).
HVM-110L-BC / HVM-110L-AC - ÜRÜN FOTOĞRAFLARI -
HVM-110L-BC / HVM-110L-AC - ÜRÜN FOTOĞRAFLARI -
CNC Tilting Head of Roller Gear Cam Drive.
HVM-110L-BC / HVM-110L-AC - ÜRÜN FOTOĞRAFLARI -
HVM-110L-BC / HVM-110L-AC - ÜRÜN FOTOĞRAFLARI -
Tilting Rotating Table 200/350/450mm With Option Angle Encoder (A+C).
